What is Thermal Bridging and Why Should Caravan Owners Care?
When it comes to keeping your caravan comfortable year-round, understanding how different insulation materials handle thermal transfer is essential. Let's explore how heat moves through various materials and what this means for your caravan.
What is Thermal Transfer?
Thermal transfer is the movement of heat from warmer areas to cooler areas. In caravans, this means heat escaping in winter and entering in summer.
What is Thermal Bridging?
Thermal bridging is one of the most overlooked issues in caravan insulation. Even if you've invested in premium insulation materials, thermal bridges can significantly reduce your caravan's thermal efficiency, leading to uncomfortable temperatures and higher energy usage. Let's dive deep into understanding this phenomenon and how to combat it if you are renovating an old van or considerations to make when buying a new one.
Understanding Thermal Bridging
A thermal bridge (also called a cold bridge or heat bridge) occurs when heat travels through a more conductive material that bypasses your insulation. Think of it like water finding the path of least resistance – heat does the same thing, flowing through materials that conduct it easily rather than through well-insulated areas.
In caravans, this typically happens through the structural framework, fasteners, and metal components that connect the interior to the exterior.

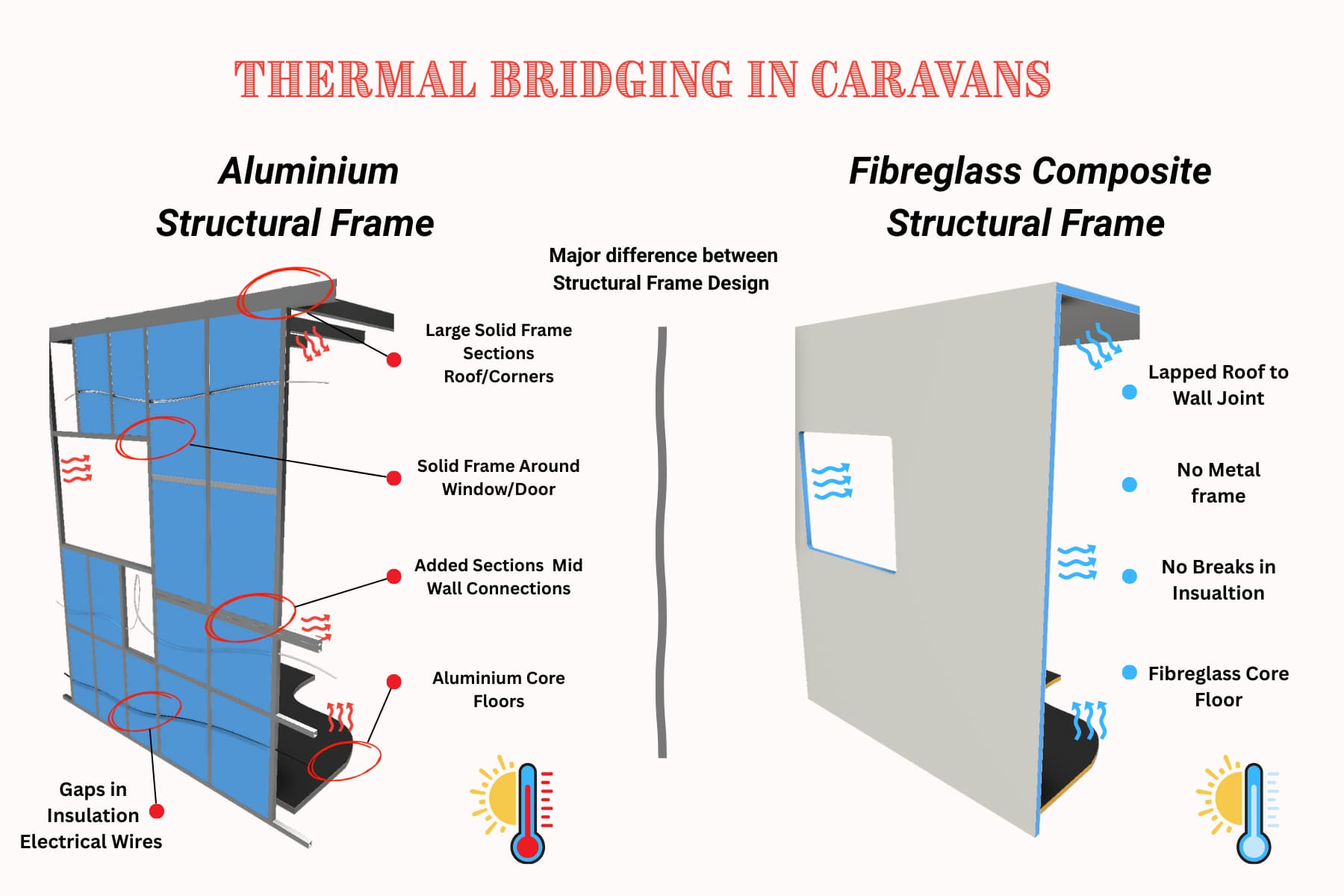

Common Thermal Bridges in Caravans
1. Aluminium Frame and Chassis
The aluminium framework that gives your caravan its structure is an excellent conductor of heat. These metal studs, rails, and supports create direct pathways for heat to transfer between inside and outside, completely bypassing your insulation.
Impact: Aluminium conducts heat about 1,000 times better than fibreglass insulation. Even if aluminium makes up only 10% of your wall area, it can account for 50% or more of total heat loss or gain.
2. Window and Door Frames
Metal window frames and door frames are major thermal bridges. The frame extends from the exterior to interior, creating a continuous conductive path. You'll often notice condensation forming on these frames in cold weather – that's thermal bridging in action.
3. Screws, Rivets, and Fasteners
Every screw or rivet that penetrates through your caravan's wall creates a tiny thermal bridge. While individually small, caravans have hundreds of these fasteners, and collectively they can significantly impact thermal performance.
4. Roof-to-Wall Junctions
Where different structural elements meet – particularly at corners and junctions – thermal bridging is often most severe. These areas typically have compressed insulation and continuous metal connections.
The Real-World Impact
Thermal bridging can reduce your caravan's effective insulation by 20-50%, depending on construction methods. This means:
- More energy required for heating and cooling
- Uncomfortable Cold in winter, Hot in summer
- Condensation problems leading to mould and moisture damage
- Reduced battery life
- Cooling issues with Fridge circulation
Identifying Thermal Bridges in Your Caravan
Visual inspection: Look for condensation, frost, or discolouration on interior surfaces – these often indicate thermal bridges.
Touch test: On a cold day, feel along walls near structural elements. Noticeably colder areas suggest thermal bridging.
Thermal imaging: A thermal camera (or smartphone attachment) can reveal thermal bridges by showing temperature differences across surfaces.
Solutions and Mitigation Strategies
Thermal Breaks
Installing thermal breaks involves placing low-conductivity materials between conductive elements. Modern caravans increasingly use plastic or composite spacers between metal frame sections to interrupt heat flow.
Continuous Insulation
Adding a continuous layer of insulation over the structural frame (rather than just between studs) can dramatically reduce thermal bridging. Rigid foam boards applied to interior walls before panelling work well for this.
Advanced Framing Techniques
Some manufacturers use timber framing instead of aluminium in certain areas, or employ composite materials that combine structural strength with lower thermal conductivity.
Insulated Window Frames
Upgrading to thermally-broken window frames or double-glazed windows with insulated frames can eliminate one of the biggest thermal bridges.
Reflective Barriers
Installing reflective foil barriers with an air gap can help reduce radiant heat transfer through thermal bridges, though they won't eliminate conductive bridging.
DIY Improvements for Existing Caravans
If you're retrofitting an older caravan, consider these practical steps:
- Seal penetrations: Use expanding foam around screws and fasteners that penetrate insulation
- Add interior insulation layer: Install thin rigid foam boards over existing walls before re-panelling
- Upgrade windows: Replace single-pane windows with double-glazed units featuring thermal breaks
- Weather stripping: While not thermal bridging per se, proper sealing prevents air leakage that compounds the problem
The Bottom Line
Thermal bridging is a complex but manageable challenge in caravan design and renovation. Understanding where heat enters through your caravan's structure allows you to make targeted improvements that deliver real comfort and efficiency gains. Whether you're buying a new caravan or upgrading an existing one, paying attention to thermal bridging will pay dividends in year-round comfort.
Remember: the best insulation in the world won't perform to its potential if thermal bridges provide an easy path for heat to bypass it.
